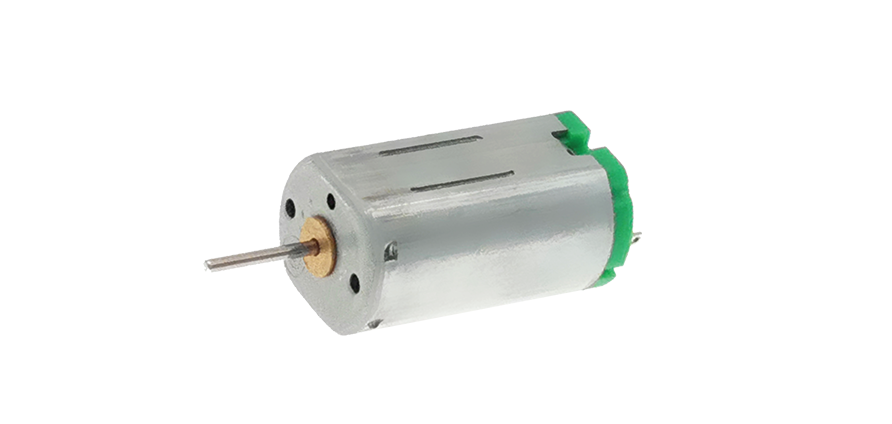

FN30F

All our motors are manufactured with the highest standard. Our stringent quality assurance process guarantees peak performance for every motor from day one.

Motor Details

Performance Chart
Technical Specs
Model : FN30F-VN-09180
Voltage : 4.2V
No Load Max Efficiency Max Output Stall
Current (A) 0.035 0.115 0.208 0.381
Speed (rpm) 8772 6732 4386 N/A
Torque (g.cm) N/A 3.2 6.9 13.7
Efficiency (%) N/A 45.4 N/A N/A
Output (W) N/A N/A 0.31 N/A
Model : FN30F-VN-09180
Voltage : 4.2V
No Load Max Efficiency Max Output Stall
Current (A) 0.035 0.115 0.208 0.381
Speed (rpm) 8772 6732 4386 N/A
Torque (g.cm) N/A 3.2 6.9 13.7
Efficiency (%) N/A 45.4 N/A N/A
Output (W) N/A N/A 0.31 N/A
Model : FN30F-VN-10140
Voltage : 3V
No Load Max Efficiency Max Output Stall
Current (A) 0.040 0.132 0.237 0.434
Speed (rpm) 7962 6108 3981 N/A
Torque (g.cm) N/A 2.8 6.1 12.1
Efficiency (%) N/A 44.7 N/A N/A
Output (W) N/A N/A 0.25 N/A
Model : FN30F-VN-10140
Voltage : 3V
No Load Max Efficiency Max Output Stall
Current (A) 0.040 0.132 0.237 0.434
Speed (rpm) 7962 6108 3981 N/A
Torque (g.cm) N/A 2.8 6.1 12.1
Efficiency (%) N/A 44.7 N/A N/A
Output (W) N/A N/A 0.25 N/A
Model : FN30F-VN-12100
Voltage : 2.5V
No Load Max Efficiency Max Output Stall
Current (A) 0.058 0.206 0.396 0.733
Speed (rpm) 9703 7573 4852 N/A
Torque (g.cm) N/A 3.2 7.4 14.7
Efficiency (%) N/A 48.6 N/A N/A
Output (W) N/A N/A 0.37 N/A
Model : FN30F-VN-12100
Voltage : 2.5V
No Load Max Efficiency Max Output Stall
Current (A) 0.058 0.206 0.396 0.733
Speed (rpm) 9703 7573 4852 N/A
Torque (g.cm) N/A 3.2 7.4 14.7
Efficiency (%) N/A 48.6 N/A N/A
Output (W) N/A N/A 0.37 N/A
