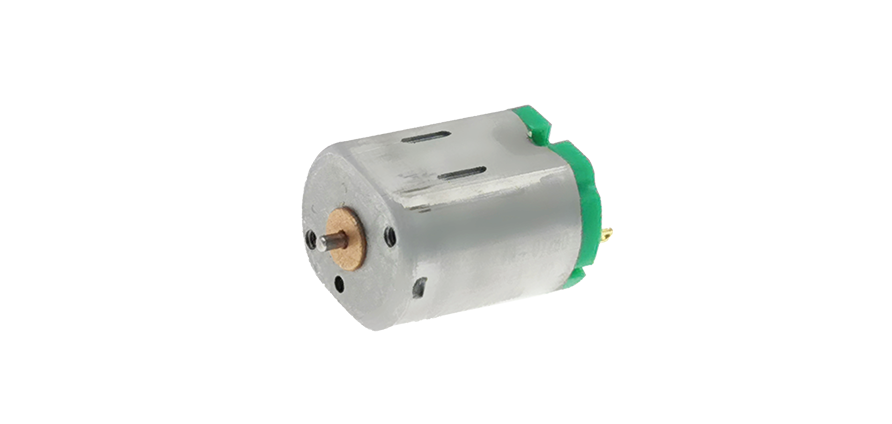

FN20K

All our motors are manufactured with the highest standard. Our stringent quality assurance process guarantees peak performance for every motor from day one.

Motor Details

Model : FN20K-VN-07220
Voltage : 6V
No Load Max Efficiency Max Output Stall
Current (A) 0.061 0.159 0.238 0.415
Speed (rpm) 19736 14266 9868 N/A
Torque (g.cm) N/A 2.4 4.3 8.5
Efficiency (%) N/A 36.1 N/A N/A
Output (W) N/A N/A 0.43 N/A
Model : FN20K-VN-07220
Voltage : 6V
No Load Max Efficiency Max Output Stall
Current (A) 0.061 0.159 0.238 0.415
Speed (rpm) 19736 14266 9868 N/A
Torque (g.cm) N/A 2.4 4.3 8.5
Efficiency (%) N/A 36.1 N/A N/A
Output (W) N/A N/A 0.43 N/A
Model : FN20K-VN-09180
Voltage : 3V
No Load Max Efficiency Max Output Stall
Current (A) 0.072A 0.179A 0.258A 0.443A
Speed (rpm) 12010 rpm 8559 rpm 6005 rpm N/A
Torque (g.cm) N/A 2.0g.cm 3.5g.cm 6.9g.cm
Efficiency (%) N/A 32.5% N/A N/A
Output (W) N/A N/A 0.21W N/A
Model : FN20K-VN-09180
Voltage : 3V
No Load Max Efficiency Max Output Stall
Current (A) 0.072A 0.179A 0.258A 0.443A
Speed (rpm) 12010 rpm 8559 rpm 6005 rpm N/A
Torque (g.cm) N/A 2.0g.cm 3.5g.cm 6.9g.cm
Efficiency (%) N/A 32.5% N/A N/A
Output (W) N/A N/A 0.21W N/A
Model : FN20K-VN-10120
Voltage : 3V
No Load Max Efficiency Max Output Stall
Current (A) 0.105 0.290 0.452 0.799
Speed (rpm) 18342 13462 9171 N/A
Torque (g.cm) N/A 2.4 4.6 9.1
Efficiency (%) N/A 38.5 N/A N/A
Output (W) N/A N/A 0.43 N/A
Model : FN20K-VN-10120
Voltage : 3V
No Load Max Efficiency Max Output Stall
Current (A) 0.105 0.290 0.452 0.799
Speed (rpm) 18342 13462 9171 N/A
Torque (g.cm) N/A 2.4 4.6 9.1
Efficiency (%) N/A 38.5 N/A N/A
Output (W) N/A N/A 0.43 N/A
