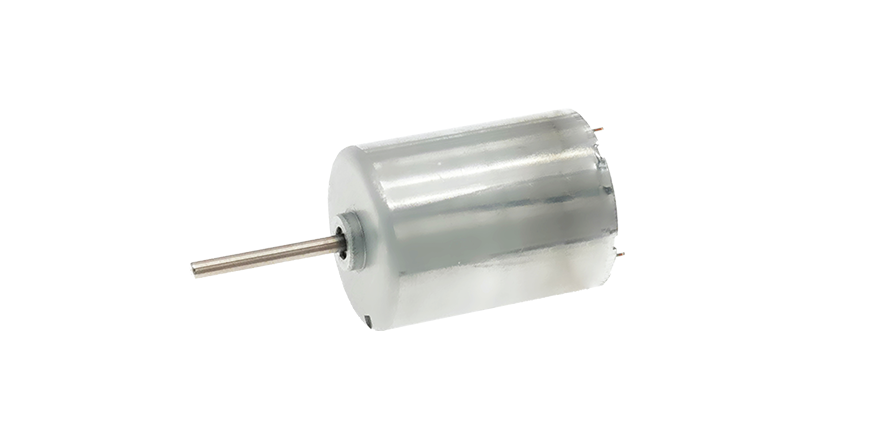

R266F

All our motors are manufactured with the highest standard. Our stringent quality assurance process guarantees peak performance for every motor from day one.

Motor Details

Performance Chart
Technical Specs
Model : R266-CT-09400
Voltage : 12V
No Load Max Efficiency Max Output Stall
Current (A) 0.013 0.051 0.107 0.200
Speed (rpm) 2730 2175 1365 N/A
Torque (g.cm) N/A 15.0 37.0 74.0
Efficiency (%) N/A 54.8 N/A N/A
Output (W) N/A N/A 0.52 N/A
Model : R266-CT-09400
Voltage : 12V
No Load Max Efficiency Max Output Stall
Current (A) 0.013 0.051 0.107 0.200
Speed (rpm) 2730 2175 1365 N/A
Torque (g.cm) N/A 15.0 37.0 74.0
Efficiency (%) N/A 54.8 N/A N/A
Output (W) N/A N/A 0.52 N/A
Model : R266-CT-10320
Voltage : 12V
No Load Max Efficiency Max Output Stall
Current (A) 0.017 0.071 0.158 0.298
Speed (rpm) 3260 2631 1630 N/A
Torque (g.cm) N/A 18.5 48.0 96.0
Efficiency (%) N/A 58.5 N/A N/A
Output (W) N/A N/A 0.72 N/A
Model : R266-CT-10320
Voltage : 12V
No Load Max Efficiency Max Output Stall
Current (A) 0.017 0.071 0.158 0.298
Speed (rpm) 3260 2631 1630 N/A
Torque (g.cm) N/A 18.5 48.0 96.0
Efficiency (%) N/A 58.5 N/A N/A
Output (W) N/A N/A 0.72 N/A
Model : R266-CT-10340
Voltage : 12V
No Load Max Efficiency Max Output Stall
Current (A) 0.017 0.068 0.146 0.275
Speed (rpm) 3001 2403 1501 N/A
Torque (g.cm) N/A 18.7 47.0 93.9
Efficiency (%) N/A 56.2 N/A N/A
Output (W) N/A N/A 0.72 N/A
Model : R266-CT-10340
Voltage : 12V
No Load Max Efficiency Max Output Stall
Current (A) 0.017 0.068 0.146 0.275
Speed (rpm) 3001 2403 1501 N/A
Torque (g.cm) N/A 18.7 47.0 93.9
Efficiency (%) N/A 56.2 N/A N/A
Output (W) N/A N/A 0.72 N/A
