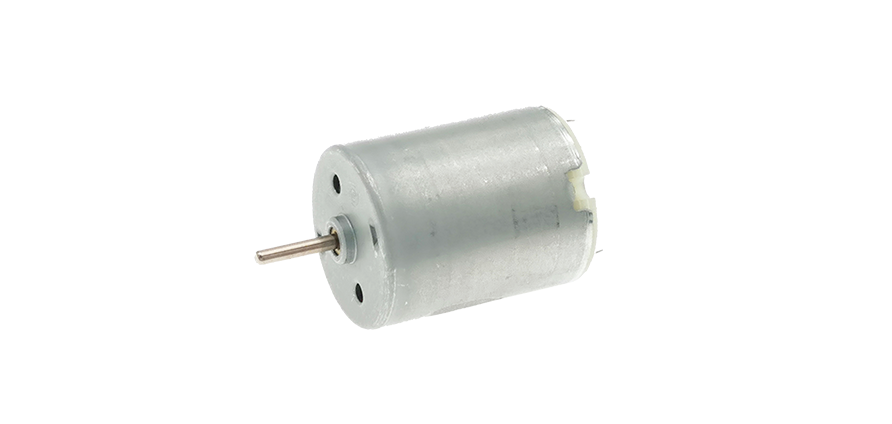

R280E

All our motors are manufactured with the highest standard. Our stringent quality assurance process guarantees peak performance for every motor from day one.

Motor Details

Performance Chart
Technical Specs
Model : R280E-NN-3060
Voltage : 3V
No Load Max Efficiency Max Output Stall
Current (A) 0.186 0.990 2.729 5.272
Speed (rpm) 9498 7996 4749 N/A
Torque (g.cm) N/A 22.0 69.6 139.1
Efficiency (%) N/A 60.7 N/A N/A
Output (W) N/A N/A 3.39 N/A
Model : R280E-NN-3060
Voltage : 3V
No Load Max Efficiency Max Output Stall
Current (A) 0.186 0.990 2.729 5.272
Speed (rpm) 9498 7996 4749 N/A
Torque (g.cm) N/A 22.0 69.6 139.1
Efficiency (%) N/A 60.7 N/A N/A
Output (W) N/A N/A 3.39 N/A
Model : R280E-NN-21110
Voltage : 6V
No Load Max Efficiency Max Output Stall
Current (A) 0.105 0.554 1.512 2.918
Speed (rpm) 10361 8709 5181 N/A
Torque (g.cm) N/A 22.9 71.8 143.5
Efficiency (%) N/A 61.5 N/A N/A
Output (W) N/A N/A 3.81 N/A
Model : R280E-NN-21110
Voltage : 6V
No Load Max Efficiency Max Output Stall
Current (A) 0.105 0.554 1.512 2.918
Speed (rpm) 10361 8709 5181 N/A
Torque (g.cm) N/A 22.9 71.8 143.5
Efficiency (%) N/A 61.5 N/A N/A
Output (W) N/A N/A 3.81 N/A
Model : R280E-NN-22110
Voltage : 4.5V
No Load Max Efficiency Max Output Stall
Current (A) 0.088 0.458 1.237 2.386
Speed (rpm) 7811 6553 3906 N/A
Torque (g.cm) N/A 18.6 57.7 115.4
Efficiency (%) N/A 60.6 N/A N/A
Output (W) N/A N/A 2.31 N/A
Model : R280E-NN-22110
Voltage : 4.5V
No Load Max Efficiency Max Output Stall
Current (A) 0.088 0.458 1.237 2.386
Speed (rpm) 7811 6553 3906 N/A
Torque (g.cm) N/A 18.6 57.7 115.4
Efficiency (%) N/A 60.6 N/A N/A
Output (W) N/A N/A 2.31 N/A
